ORION

Safety Goggles

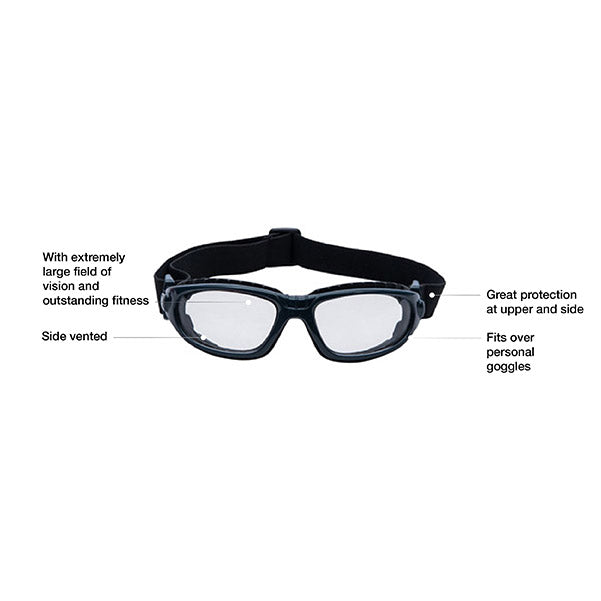

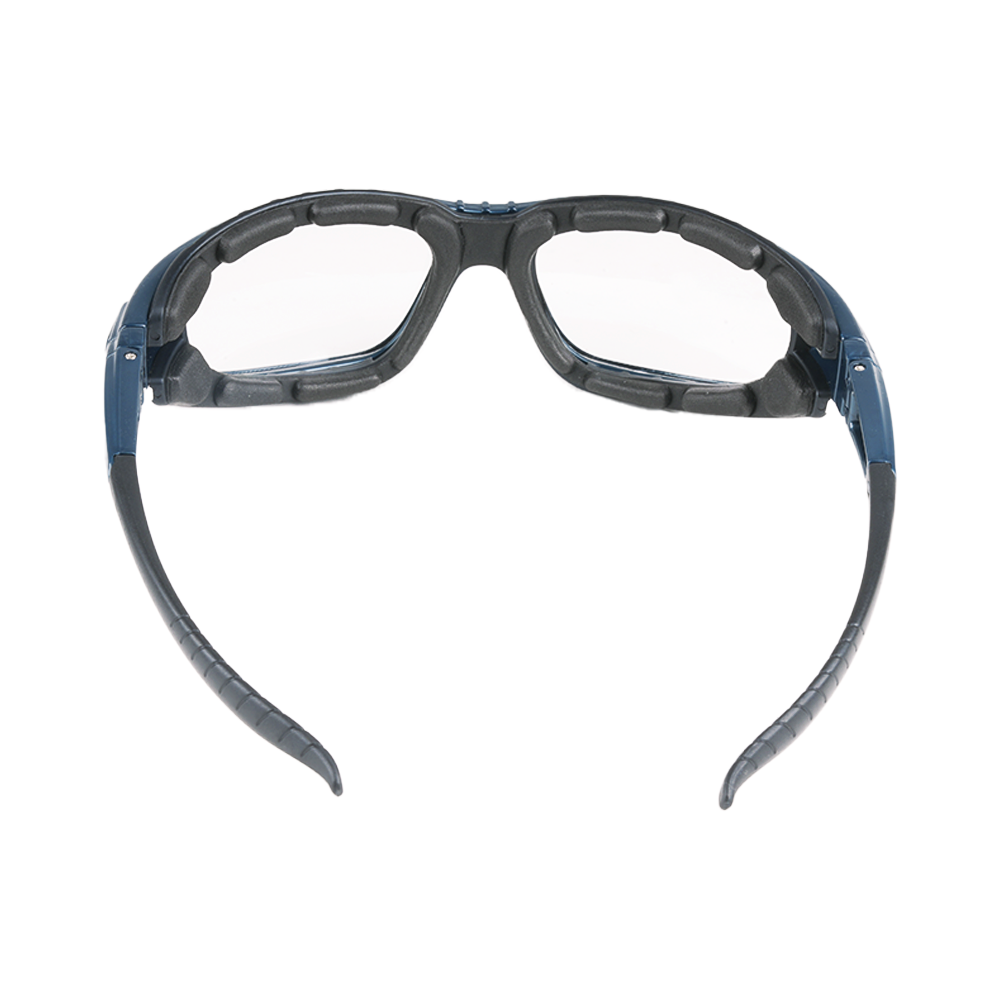

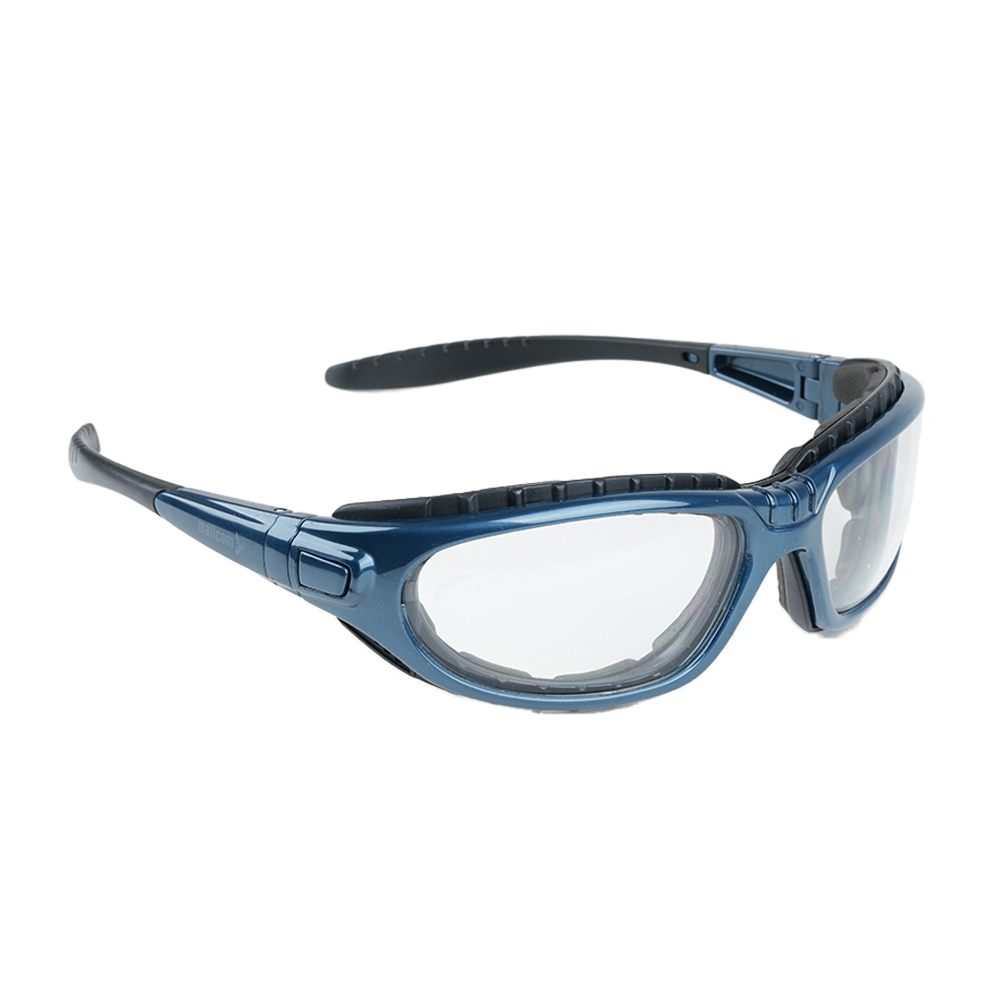

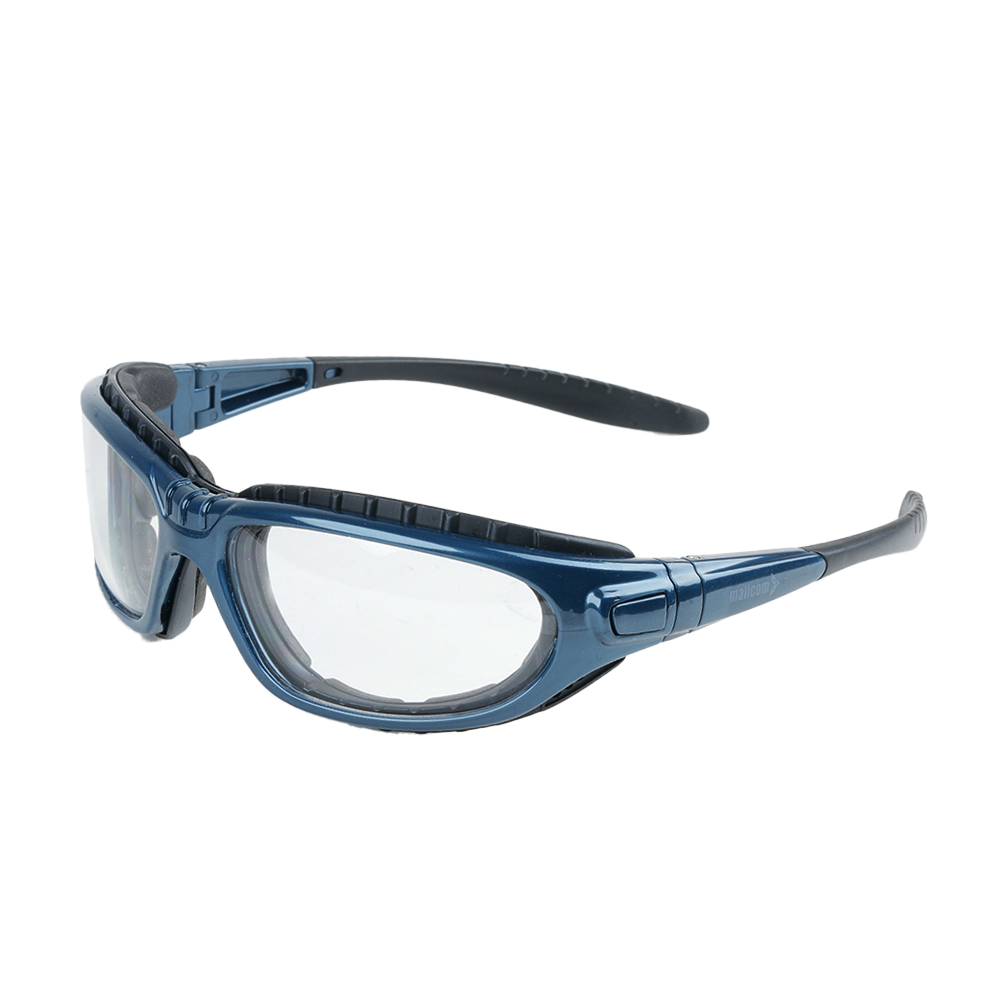

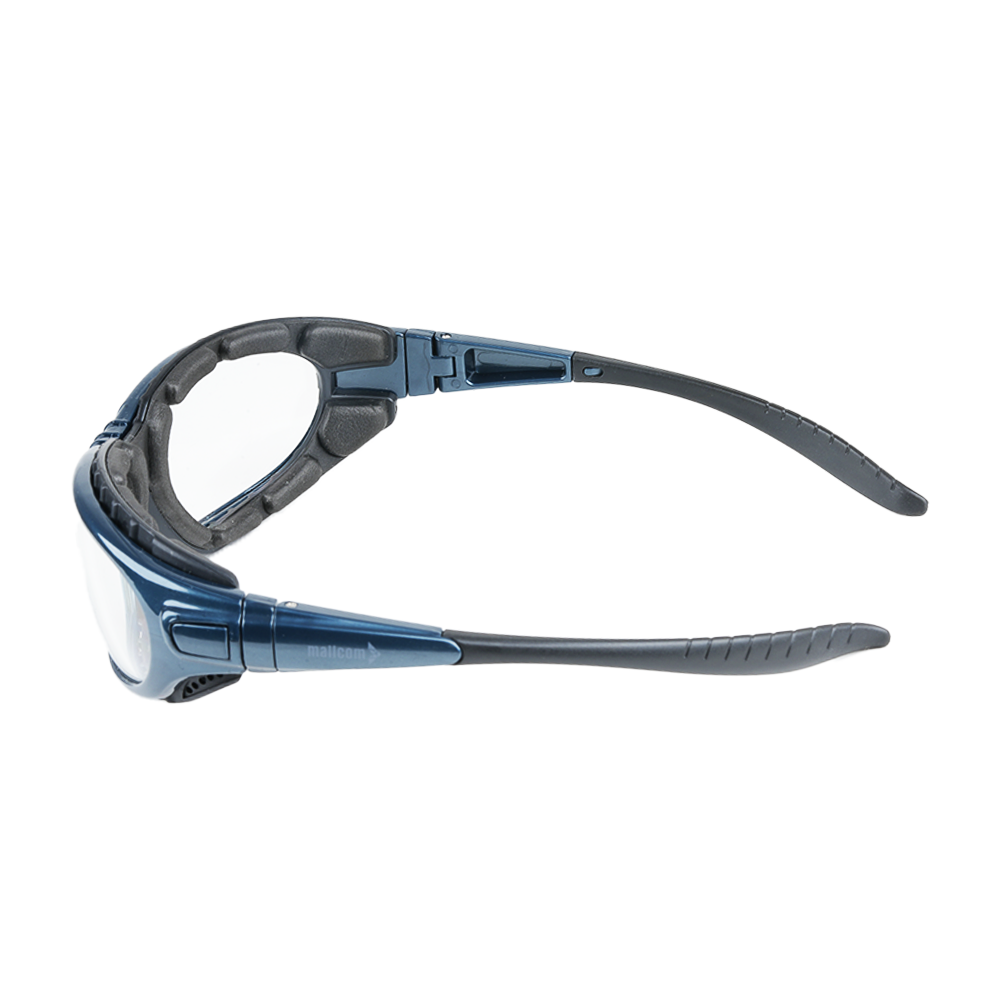

Mallcom Orion polycarbonate frame with removable eyebrow protector safety goggles
Safety goggles with removable eyebrow protector and interchangeable temples.

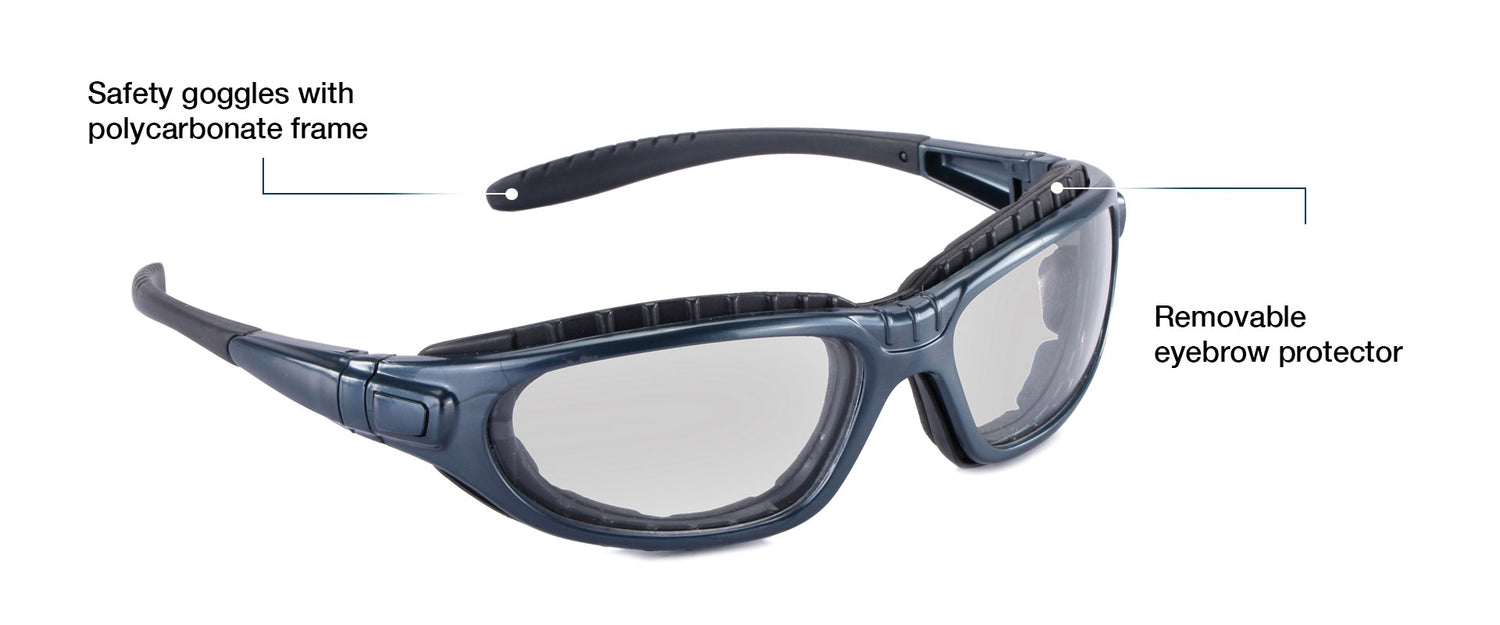

Safety goggles with polycarbonate frame
Removable eyebrow protector.

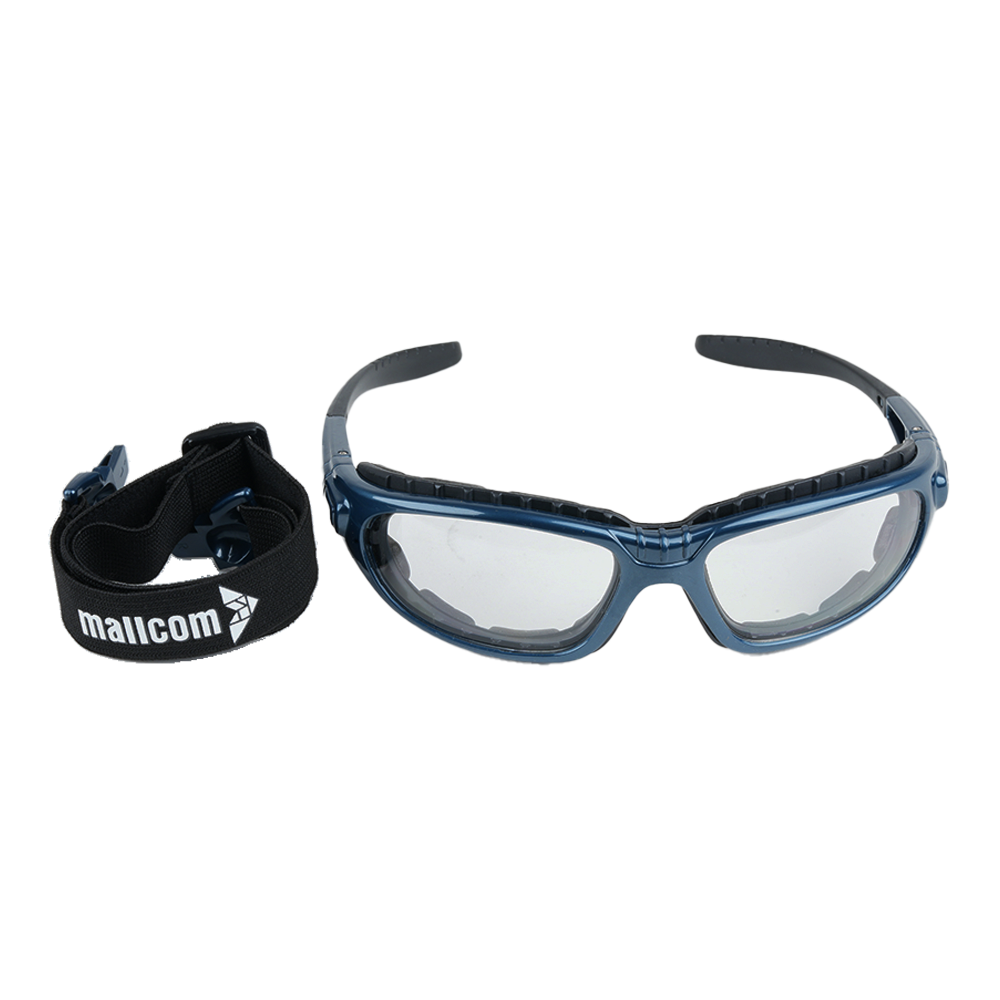

Temples can be replaced eith elastic Head band
Detachable parts

Chemical Splash

Dirt

Dust

ORION

Size Chart

How to Measure

ORION

Product variants

Bulk Orders

For Bulk Orders, Fill out the enquiry form and someone from our team will get back to you as soon as possible.

MDS

EN 166

Delivery & Services

Easy Return

with our 15 days return poicy

Rs. 0

Tax included. Shipping calculated at checkout.

View full details

Product Features
Product Details
Tests
Reviews

ABOUT THE DESIGN

USEFUL IN THESE INDUSTRIES

MANUFACTURING

CHEMICAL & PAINT

REPAIR & MAINTENANCE

CONSTRUCTION

Key Features: • Available with removable eyebrow protector. • Temples can be replaced with elastic head band.

Design: Detachable frame option makes it trendy.

Remarks: Detachable lens options with multicolour make the goggles more attractive and catchy.

Test Conducted:

• The optical tests detailed in EN 167 ensure that no form of protective eyewear will unacceptably distort or restrict the wearer’s vision, and include checking for spherical, astigmatic and prismatic refractive powers. Other test methods include assessment of light diffusion and variations in luminance transmittance.

• The transmittance of light is an important parameter. Measurements have shown that ordinary reading glasses with no protective properties may reduce the light reaching the eye by around 10 percent and lightly tinted reading glasses can reduce light by 40 percent. Protective eyewear can similarly reduce vision in low light conditions. The measuring equipment used provides a highly controlled beam of light that is collected by a detector. The detector is calibrated for 100 percent transmittance with no ocular (the transparent glass or plastic component) in position. The ocular is then placed in front of the detector to interrupt the light beam and the reduced light collected is measured.

• Non-optical tests covered in EN 168 include a field of vision to ensure that frames do not unacceptably impede peripheral vision. Physical property tests ensure that the eyewear provides the mechanical protection claimed and remains fit for use after normal wear and tear.

• Safety eyewear is tested for resistance to ignition using a heated probe at 650ºC. A steel rod is heated to the required temperature and the heated end face is pressed onto all parts of the test sample except elastic headbands and textile edgings.

• As an absolute minimum for robustness, oculars must withstand a force of 100N (approximately 10kg) applied via a 122mm diameter steel ball, without breakage or excessive deflection. Where increased robustness is needed, the steel ball is projected to impact the defined points on the frame and oculars under high and low-temperature conditions (55ºC +/- 2ºC and -5ºC +/- 2ºC).

• Corrosion resistance tests involve immersing the sample in a solution of sodium chloride (salt) at both boiling point and room temperature. The sample is then dried off and checked visually 24 hours later for any corrosion. Other tests include assessing the usability of the eye protector after exposure to ultraviolet light originating from strong sunlight or welding arcs.
